Common Questions for the Verbatim Auto dialer.
Top 10 Common Questions:
1. Programming & Changing Phone Numbers.
2. Message Recording & Reviewing.
3. Alarm Trip Delay.
4. Auto-Call function & Daily check in.
5. Locked up & Unresponsive.
6. No Power.
7. Not Calling out on Alarms.
8. Cannot Call into the Verbatim.
9. Power Failure Alarm not working.
10. Disarming itself & False alarm calls & Other Issues.
Bonus: Wiring Analog Channels and Scaling.
1. Programming & Changing Phone Numbers:
- Step 1: Press the [PROGRAM] button on the front panel to enter Programming Mode.
- Note: Once in programming mode, you can use the number buttons and codes to program the Verbatim.
Programming Phone Numbers and Delays
- Add a "1" before the phone number if it is a cell phone or long-distance. If you need to add a 1 second delay between the phone number use the Minus Key on the front panel.
- 1 minus = 1 second of delay
- minus + minus = 2 seconds of delay
- etc.
Adding Phone Numbers
- 701 1-555-5555 Enter → Saves to 1st phone number slot
- 702 1-555-5555 Enter → Saves to 2nd phone number slot
- Continue the pattern for additional numbers.
Deleting Phone Numbers
- 701 * Enter → Deletes the 1st phone number
- 702 * Enter → Deletes the 2nd phone number
- Continue for additional numbers.
- (*The "*" key is the point key on the Verbatim.)
Changing (Overwriting) Phone Numbers
- Overwriting a phone number follows the same process as adding a new one:
- 701 1-555-5555 Enter → Overwrites the 1st phone number slot
- 702 1-555-5555 Enter → Overwrites the 2nd phone number slot
- Continue for additional numbers.
Checking Previous Phone Numbers
-
701 Enter → Announces the first phone number.
-
702 Enter → Announces the second phone number.
-
Continue for additional numbers.
2. Recording Alarm Messages:
- After entering the code, wait for the prompt.
- Press and hold the record button to record the message.
- Release the record button when done, and the message will play back.
Recording Codes
- 100 Enter → Records the Station ID
- 101 Enter → Records Alarm Message 1
- 102 Enter → Records Alarm Message 2
- Continue for additional messages.
- If you need to change a recording, use the same code and it will overwrite the previous recording
2b. Recording Normal Messages.
-
201 Enter → Records Normal Message 1
-
202 Enter → Records Normal Message 2
-
Continue for additional messages.
2c. Checking Alarm Messages. [ useful to hear what you are monitoring on that channel ]
-
301 Enter → Plays’ Back both alarm / normal.
-
302 Enter → Plays’ Back both alarm / normal.
-
Continue for additional messages.
3. Alarm Trip Delays:
- 902 1 Enter → Sets one second of delay
- 902 5 Enter → Sets 5 seconds of delay
- 902 x Enter → Sets x seconds of delay
- Note: Trip Delays are always in Seconds.
- Locked Up:
- Check Configuration: Verify the Verbatim configuration using the serial number.
- Option Cards: If option cards are installed incorrectly, the system may lock up.
- Remove the expansion card and inspect the pins for bending.
- Align the pins carefully with the socket on the main board and ensure all pins are fully seated with none exposed.
- Repeat this process for all option cards.
- Daughter Card Note: The bottom slot on the daughter card is not buffered—use only the top three slots.
- Battery: Verify the lithium battery is above 3 volts.
- Factory Reset: Perform a JB-3 reset if needed.
- Location of JB-3: Open up the door on the Verbatim. Locate the Main Board label VMP7 or VMP-5 [Depending on the age of the Verbatim]. From the bottom left corner of the Main Board on the very edge.. go straight up 5 inches and you will see 2 sets of good pins. JB-5 and JB-3.
JB-3 is the hard reset [Short out the 2 pins and hold for at least 5 seconds]
JB-5 is the soft reset. [Short out the 2 pins and hold for at least 5 seconds]
5. No Power:- Voltage Type: Check the serial number to determine voltage type:
- 12V DC: Serial numbers above V26842 (dated 09/28/2016) are 12V DC.
- 120V AC: Earlier units may use 120V AC.
- Input Voltage: Verify correct input voltage (12V DC or 120V AC).
- Fuse Check:
- For 120V AC models, measure live and neutral—it should read around 100 ohms, indicating power reaching the transformer.
6. Not going into alarm:- Check Configuration: Verify the serial number for the correct setup.
- 8-Channel Verbatim:
- Do not use contacts 1-4 on the bottom left of the main board.
- Use the common terminals (C C C C).
- All alarm contacts should be connected to the expansion card plugged into the center of the main board.
ALARM CONDITIONS CHECK:
- Verify alarm conditions are properly set for each channel.
- Measure voltage on dry contacts:
- Open: 5V DC
- Closed: 0V DC
- Verbatim supplies 5V DC on the contact; ensure sensors are dry.
7. Not Calling out on alarms:- Phone Line Type: Confirm the phone line is an analog copper POTS line.
- Dial Out Test: Press the Dial Out button; you should hear a dial tone.
- Voltage Check: Verify 50V DC on the phone line.
- No Voltage:
- Disconnect the tip and ring wires from Verbatim to rule out a short in its phone circuit.
- Check voltage again.
- Line Test: Disconnect Verbatim and test the line with a handheld phone.
8. Will not pick up incoming calls:- Voltage Check: Verify 50V DC on the tip and ring.
- K1 Relay: Confirm the K1 relay is present and properly installed (indent facing upward).
- Line Test: Disconnect Verbatim, plug in a regular phone, and call to confirm the line rings.
9. Power Failure Alarm not working:- 6V Battery Check:
- Test the battery under load.
- Disconnect AC power and ensure voltage is at least 6.3V.
- Battery Leads:
- Measure red and black leads with the battery disconnected.
- Voltage should read approximately 6.8V.
10. Disarming itself & False alarm calls & Other Issues.- Possible Memory Corruption:
- Replace the lithium battery.
- Perform a JB-3 factory reset.
- When replacing the battery, gently lift it to avoid bending the clip, ensuring proper contact.

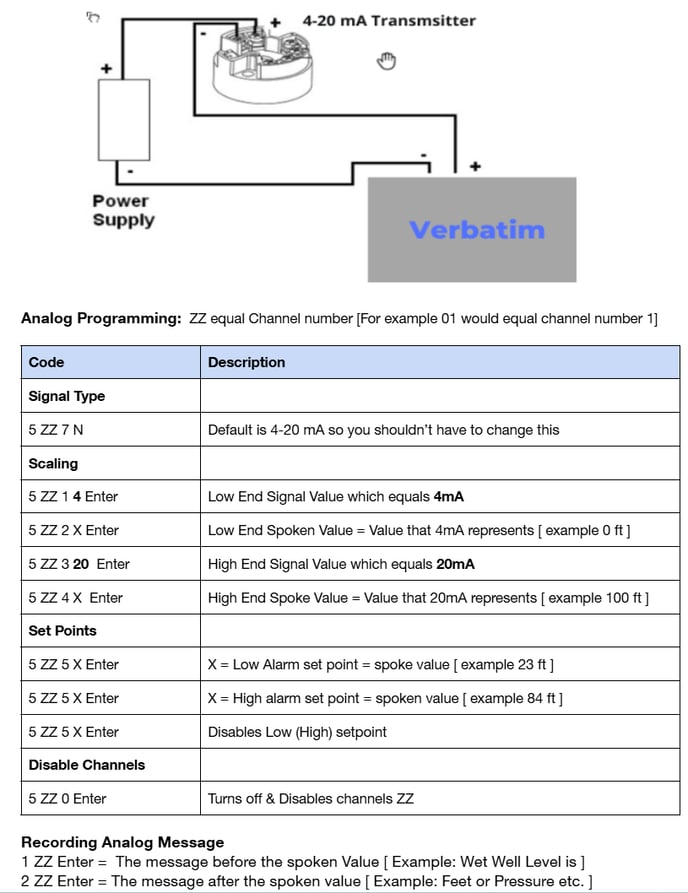

Bonus: How to wire the Verbatim for Analog:- Dry Contact Sensors:
- Two-wire setup:
- One wire to Common (C).
- The other wire to the desired channel input.
- Two-wire setup:
- Analog Channels (4-20 mA Loop):
- Set the signal range:
- Low End Signal Value: 4mA
- High End Signal Value: 20mA
- Assign spoken values representing these signals for alarm thresholds.
- Set the signal range:
- Location of JB-3: Open up the door on the Verbatim. Locate the Main Board label VMP7 or VMP-5 [Depending on the age of the Verbatim]. From the bottom left corner of the Main Board on the very edge.. go straight up 5 inches and you will see 2 sets of good pins. JB-5 and JB-3.
